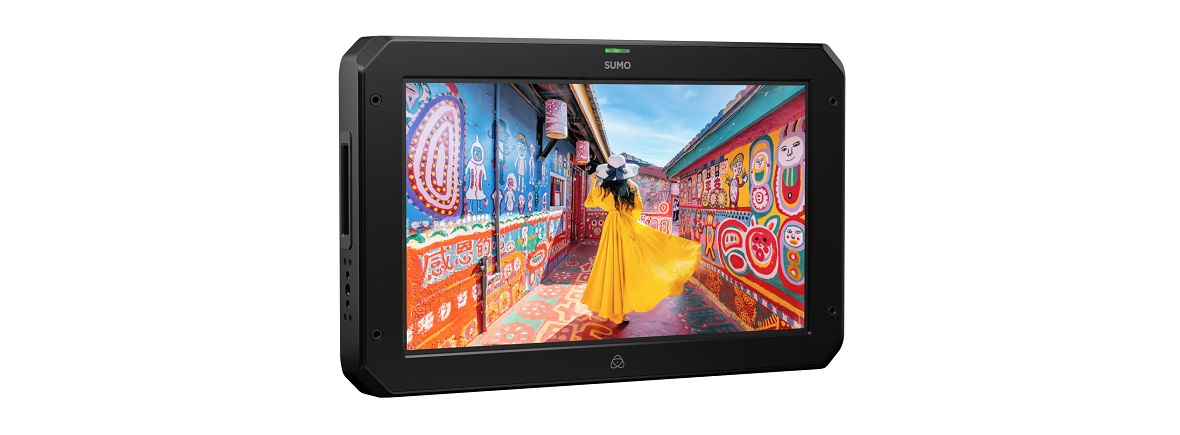

Atomos Sumo 19″ SE Monitor Recorder

Rental price(First day rental rate) AU$150
Panel Type: SuperAtom IPS Panel (Capacitive Touch)
Display Size: 19″
Screen Resolution: 1920 x 1080
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1200nit
Pixels Per Inch (ppi): 120
Image Controls: Anamorphic De-Squeeze
Blue Only
False Color
Focus Peaking
Pixel-to-Pixel Zoom
RGB Parade
Scaling
Vectorscope
Waveform
Zebra
Video:

1 x HDMI Type A (HDMI 2.0) Input
2 x 12G SDI (6G/3G Backwards Compatible) + 2 x 3G SDI Inputs

1 x HDMI (2.0) Output
1 x 12G SDI Loop/ Play Out
Embedded Audio: HDMI: 8-Channel 24-Bit
SDI: 12-Channel 24-Bit
Audio:

Audio In: 2 x 3-Pin XLR (F)
Audio Out: 2 x 3-Pin XLR (M)
Video Format: HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/60/50/30/25/24
1080i: 60/50
720p: 60/50
Video Signal Conversion: HDMI to SDI
SDI to HDMI
Encoding Formats: 6K RAW up to 6K30 Via SDI
4K RAW up to 4K60 Via SDI
2K RAW up to 2K240 via SDI
4K DCI up to 4K60
4K UHD up to UHDp60
2K DCI 2048 x 1080 up to 2K60
FHD 1920 x 1080 Progressive up to 1080120
FHD 1920 x 1080 PsF Only Via Pulldown to Progressive
FHD 1920 x 1080 Interlaced 1080i50/ 1080i60
1280 x 720p up to 72060

Full List of Specs available on Atomos website

The Atomos Sumo 19SE 19-inch monitor recorder is a 1200nit daylight-viewable HDR touchscreen monitor with precise color accuracy and rugged versatility. Designed for professional environments like video villages, multi-camera productions, and live switching, it supports ProRes RAW up to 6Kp30 and enables flexible, real-time workflows from acquisition to post.

Featuring a 1200nit, 10-bit panel with 100% DCI-P3 color gamut coverage, the Sumo 19SE offers exceptional brightness, detail, and HDR accuracy in both SDR and HDR workflows. Its robust design is perfect for indoor and outdoor shoots, while AtomHDR technology enables precise exposure and monitoring of Log footage in real-time.

  • Monitor in HLG, PQ (HDR10), or Log with built-in LUTs
  • View fine shadow and highlight detail clearly, even in daylight
  • Factory-calibrated display ensures accurate color reproduction

Record RAW Direct from the Camera Sensor

Sumo 19SE unlocks the full potential of professional cameras with support for Apple ProRes RAW and Avid DNxHR over SDI and HDMI.

  • Capture pristine 6Kp30, 4Kp60, or HD signals directly from the sensor
  • Record high-bit-depth 10-bit 4:2:2 footage for superior post-production flexibility
  • Combine RAW video quality with codec efficiency for fast delivery or editing

Multicam Switching with ISO Recording

More than a monitor and recorder, the Sumo 19SE also functions as a four-channel live switcher with individual ISO recording for each source.

  • Accepts four simultaneous 1080p60 SDI inputs
  • Switch between feeds live while recording all four ISOs plus the program feed
  • Timecode-synced clips make multicam editing easy in post
  • Perfect for live events, music videos, or studio-based production, it’s an efficient and portable solution for multicam workflows.

Professional Audio Inputs & Monitoring

Sumo 19SE integrates easily into professional sound workflows with full-sized XLR inputs, supporting:

  • 48V phantom power
  • Analog audio recording with adjustable gain control
  • On-screen audio monitoring and metering

This enables direct connection to boom mics, mixers, or external preamps, ideal for solo shooters and mobile crews.

Rugged Build for Field and Studio

With its durable aluminium alloy chassis, dual rear mounting points, and optional rack-mount ears, the Sumo 19SE is ready for any environment:

  • Mount to C-stands, combo stands, or in flyaway kits
  • Built for continuous operation in live, studio, and remote locations
  • Fanless operation option available for quiet sets

Flexible Connectivity & Control

The Sumo 19SE comes with both 12G-SDI and HDMI 2.0 connections for broad compatibility. Use it with cinema cameras, mirrorless cameras, or video switchers.

  • AtomOS software provides waveform, vectorscope, focus peaking, false color, frame guides, and more
  • Tally light indicators for use in multi-cam environments
  • Control over RS422 or via touchscreen interface



Add-ons:

V-lock Battery Kits
4 x V-lock Kit
6 x V-lock Kit
