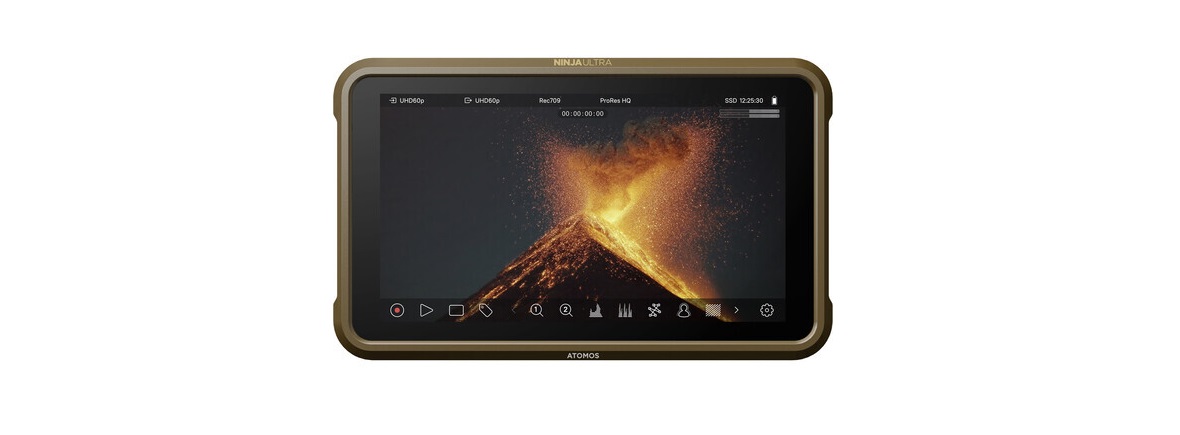

Atomos Ninja Ultra 5.2″ 4K Monitor Recorder

Rental price(First day rental rate) AU$68
Panel Type: IPS-Type LCD
Display Size: 5.2″ / 13.2 cm
Screen Resolution: 1920 x 1080
Aspect Ratio: 16:9
Touchscreen: Yes
Maximum Brightness: 1000 cd/m2
Pixels Per Inch (ppi): 423 ppi
Image Controls: Anamorphic De-Squeeze
Blue Only
False Color
Focus Peaking
RGB Parade
Screen Markers
Vectorscope
Waveform
Zebra
Video: 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
Embedded Audio: HDMI: 2-Channel
HDMI: 8-Channel
Audio: 1 x 1/8″ / 3.5 mm Mic/Line Input
1 x 1/8″ / 3.5 mm Headphone Output
Video Format: HDMI (8/10/16-Bit 4:2:2)
8K Raw: 30
6K Raw: 60
3.5K Raw: 60
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080PsF
1080i: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Gamma Curves ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Dimensions and Weight: 5.9 x 3.6 x 1.2″ / 151 x 91.5 x 31 mm
12.70 oz / 360.00 g

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja Ultra 5.2″ 4K HDMI Recording Monitor is a 5.2″ on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 8K with compatible cameras. The Ninja Ultra retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

AtomOS 11 Operating System
Built for the new Ninja Ultra, the AtomOS 11 operating system equips your monitor with new features along with an improved icon interface for more intuitive operation. Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assist functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG previewing.

5.2″ Touchscreen Display
The 5.2″ IPS touchscreen of the Ninja Ultra offers a 1920 x 1080 resolution with 1000 cd/m² brightness for viewing in broad daylight. The 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure color-accurate, high-quality monitoring of your footage.

HDMI Interface, ProRes RAW Recording

The Ninja Ultra’s HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW at 60 fps footage is supported with select cameras.

Over 55 different cameras support RAW recording over HDMI with the Ninja Ultra up to 8K at 30 fps.

SSD Recording

The Ninja Ultra is compatible with the Atomos Master Caddy II and Master Caddy III 2.5″ hard drive units which support direct recording to the drives. You can also record onto compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.

Included in hire kit:

  • Ninja 5.2″ 4K HDMI Recorder
  • Rubber Silicone Cover
  • Camera Mount
  • 1 x AtomX 500GB Mini SSD
  • 1 x SSD Reader
  • 2 x NP-F970 Battery
  • 1 x NP-F USB Dual Charger
  • 1 x Carry Case
